Graphical Interface
This part discusses the use of the Graphical User Interface (GUI). For tutorial on using
tesliper
in Python scripts, see tutorial.
On Windows system you may start the GUI by downloading and double-clicking
Tesliper.exe
file available in the latest release, as described in the
Installation section. Executable files are not available for other
systems, unfortunately, but you may start the GUI from the command line as well:
$ python -m pip install tesliper[gui] # only once
$ tesliper-gui # starts GUI
Note
If you’d like to start the graphical interface from the local copy, you may also
run it as a module with python -m tesliper.gui
.
Please note that the first launch may take additional time. After the application starts, a window like the one bellow will appear. It’s actual looks will depend on your operating system.

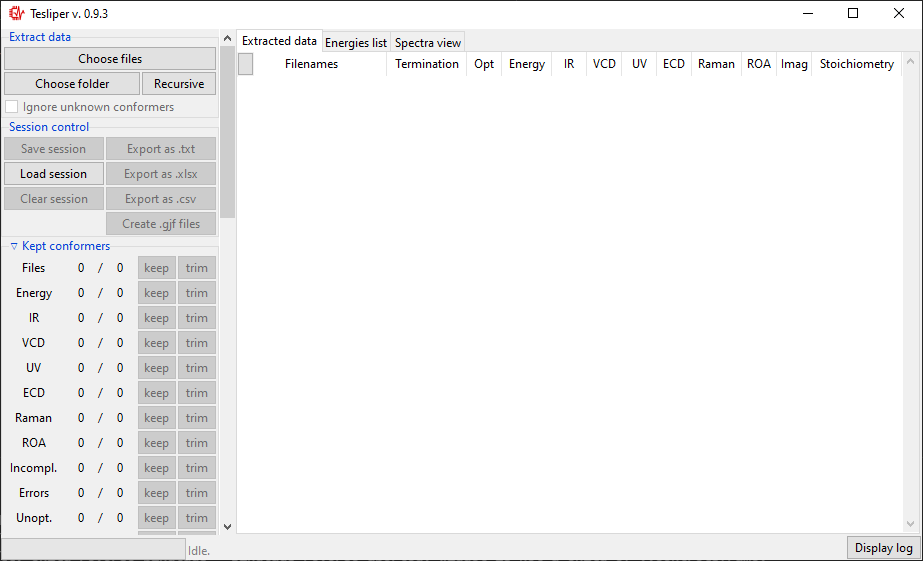

The Interface is divided in two parts: controls on the left and views (initially empty) on the right. Controls panel are further divided into sections, some of which may be collapsed by clicking on the section title (those with a small arrow on the left). Each section will be described further in this tutorial, in the appropriate section.
There are tree views available: Extracted data
and Energies list
summarize all
conformers read from files. Extracted data
details what data is available and shows
status of calculations for each conformer. Energies list
shows values of conformers’
energies calculated by quantum chemical software and derived values: Boltzmann factors
and conformers’ populations.
Reading files
tesliper
supports reading data from computations performed using Gaussian software.

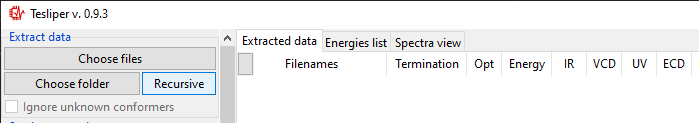

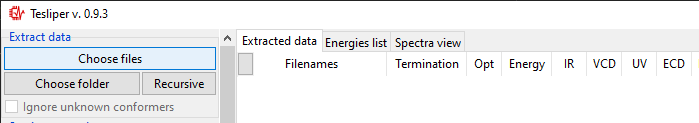

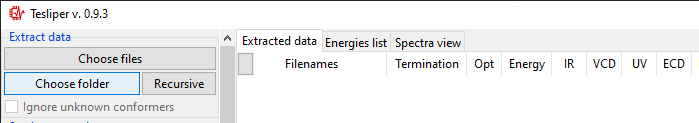

To load data, use controls in the Extract data
section. Choose files
button
allows you to select individual files to read using the popup dialog. Choose folder
button shows a similar dialog, but allowing you to select a single directory - all
Gaussian output files in this directory (but not subdirectories) will be read. Finally,
using the Recursive
button will also read files form all subdirectories,
recursively.
Note
Make sure you do not have mixed .log and .out files in the directory, when using
Choose folder
button.

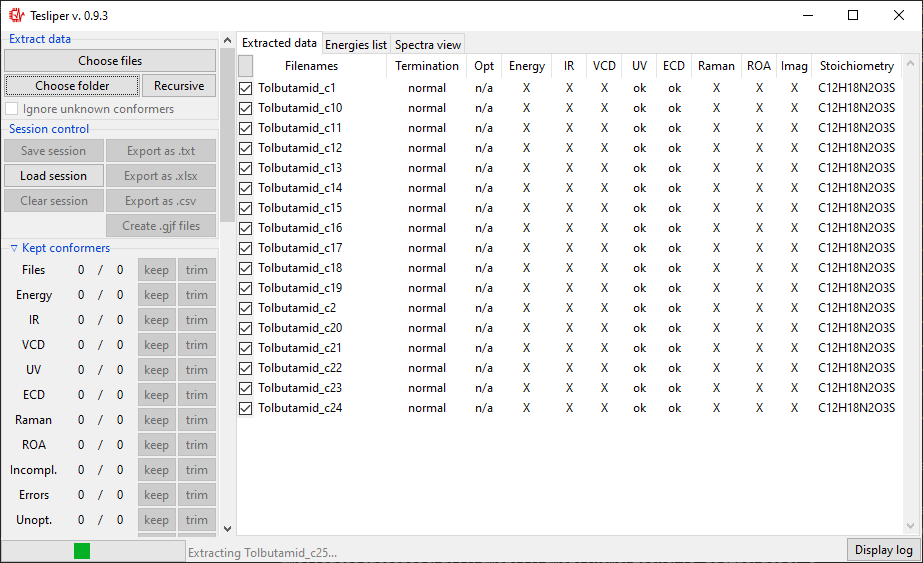

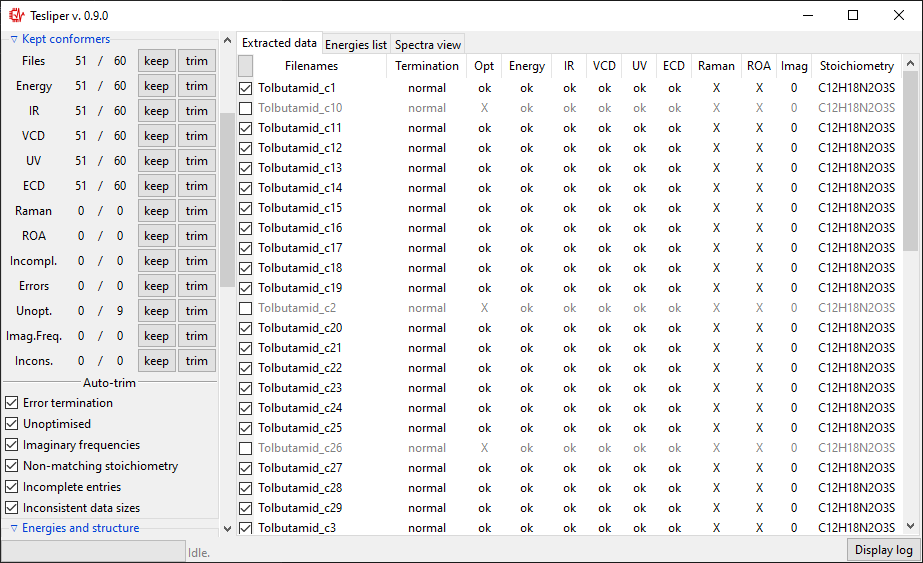

Once you select files or directory and confirm your selection, the process of data
extraction will start and Extract data
view will be updated for each read conformer.
It will show if calculation job terminated normally (Termination
), if conformer’s
structure was optimized and if optimization was successful (Opt
), if extended set of
energies is available (Energy
), what spectral data it available (IR
, VCD
,
UV
, ECD
, Raman
, ROA
), how many imaginary frequencies are reported for
conformer (Imag
), and what is conformer’s stoichiometry (Stoichiometry
).
When data extraction is finished, the status barr att the bottom will show Idle
again. After reading first portion of files, you may tick the Ignore unknown
conformers
option. When this option is ticked, tesliper
will only read files that
correspond to conformers it already knows (judging by the filename).
Trimming conformers
Conformers may be marked as kept not kept (trimmed). Only kept conformers are processed by tesliper
,
trimmed ones are ignored. This mechanism allows you to select which
conformers should be included in the final averaged spectrum, etc. Trimmed conformers
are shown in gray.

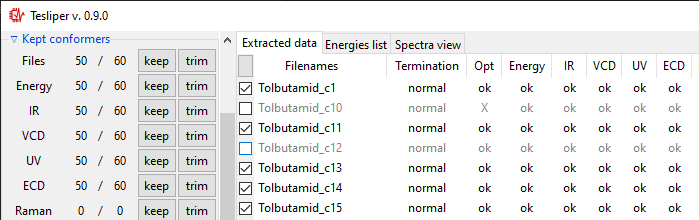

Kept conformers
section shows how many conformers contain certain data and allows to
easily keep/trim whole groups of conformers, using keep
and trim
buttons beside
the appropriate group. You may also keep/trim individual conformers by ticking/unticking
checkboxes beside the conformers name (left of Filenames
column).
After finished data extraction and after each manual trimming, auto-trimming is
performed to make sure corrupted or invalid conformers are not accidentally

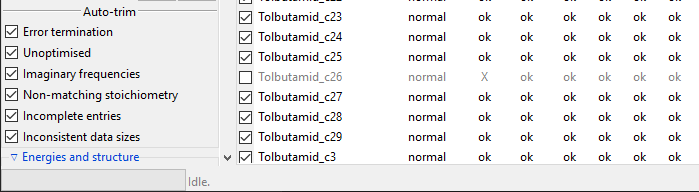

kept. Checkboxes in the Auto-trim
subsection, shown below, control which
conformers should be always trimmed.
Tip
Incomplete entries
are conformers that miss some data, which other conformers
include, e.g. those that were left out in one of calculations steps. Inconsistent
data sizes
indicates that some multi-value data has different number of data
points than in case of other conformers. This usually suggests that conformer in
question is not actually a conformer but a different molecule.
Trimming with sieves

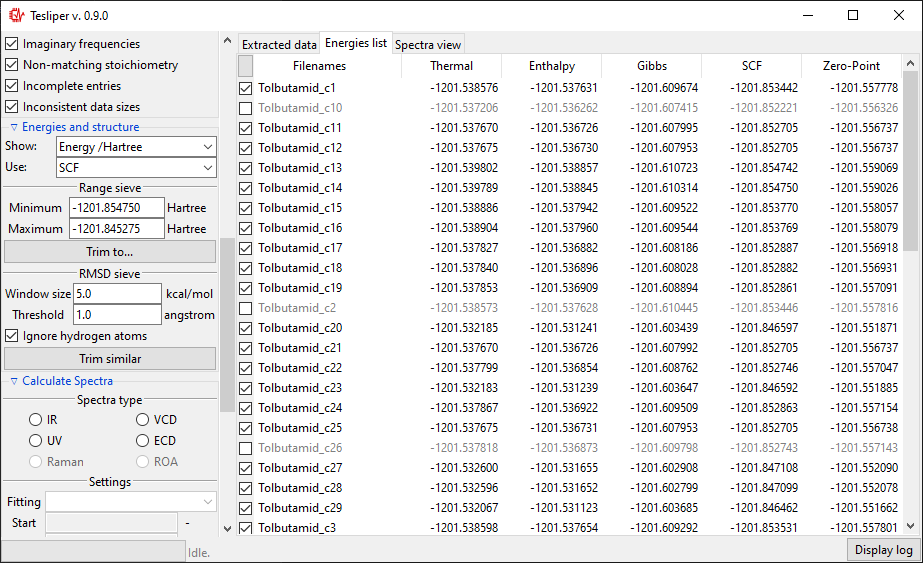

The Energies and structure
section, described in this part, is related with the
Energies list
view. This view shows, as the name suggests, list of energies for each
conformer and energies-derived values.

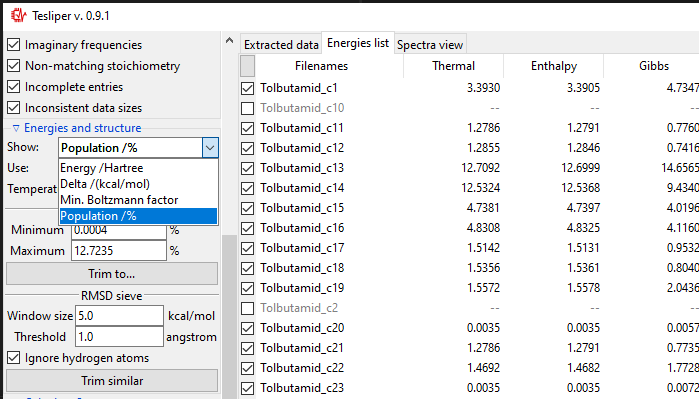

Using a Show:
drop-down menu you may select a different energies-derived data to
show in the view. Delta
is conformer’s energy difference to the most stable
(lowest-energy) conformer (in \(\mathrm{kcal}/\mathrm{mol}\) units), Min.
Boltzmann factor
is conformer’s Boltzmann factor in respect to the most stable
conformer (unitless) and Popuation
is population of conformers according to the
Boltzmann distribution (in perecnt). Original Energy
values are shown in Hartree
units.

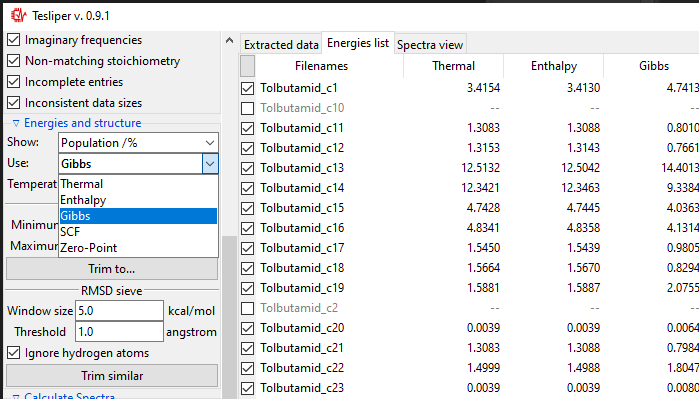

Both types of sieves provided depend on the selected value of the Use:
drop-down
menu. It determines, which energy values are used by the sieves. Only available energies
wil be shown in the list. In case their names are not intuitive enough, here is the
explanation:
Thermal
: sum of electronic and thermal Energies;Enthalpy
: sum of electronic and thermal Enthalpies;Gibbs
: sum of electronic and thermal Free Energies;SCF
: energy calculated with the self-consistent field method;Zero-Point
: sum of electronic and zero-point Energies.The Range sieve
lets you to trim conformers that have a current Show:
value
outside of the specified range. After you fill the Minimum
and Maximum
fields to
match your needs, click Trim to...

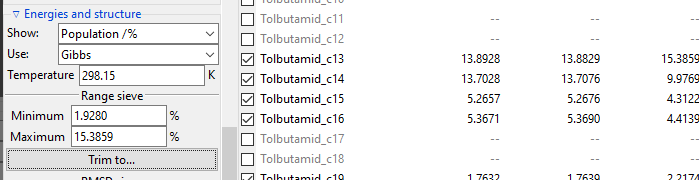

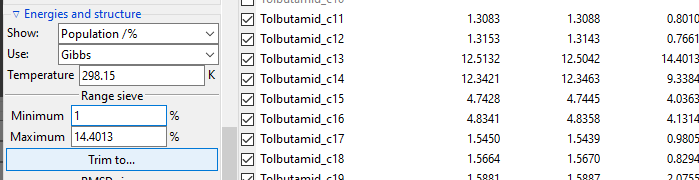

button to perform trimming. The example below
shows trimming of conformers, which Free Energy-derived population is below 1%. Please
note that valuesin the Energies list
are recalculated and Minimum
and
Maximum
fields are updated to show real current max and min values.

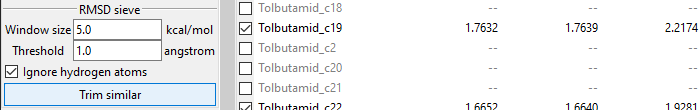

The RMSD Sieve
lets you mathematically compare structures of conformers and trim
duplicates and almost-duplicates. RMSD stands for root-mean-square deviation of atomic
positions and is a conformers similarity measure. The sieve calculates the average
distance between atoms of two conformers and trims the less stable (higher-energy)
conformer of the two, if the resulting RMSD value is smaller than value ot the
Threshold
field.
Calculating an RMSD value is quite resource-costly. To assure efficient trimming, each
conformer is compared only with conformers inside its energy window, defied by the
Window size
filed value. Conformers of energy this much higher or lower are
automatically considered different.
Temperature of the system
The Energies and structure
section also allows you to specify the temperature
of the studied system. This parameter is important for calculation of the Boltzmann
distribution of conformers, which is used to estimate conformers’ population
and average conformers’ spectra. The default value is the room temperature,
expressed as \(298.15\ \mathrm{Kelvin}\) (\(25.0^{\circ}\mathrm{C}\)).
Changing this value will trigger automatic recalculation of Min. Boltzmann factor
and Population
values, and average spectra will be redrawn.
New in version 0.9.1: The Temperature
entry allowing to change the temperature value.
Spectra simulation
Calculate Spectra
controls section and Spectra view
tab allow to preview the
simulation of selected spectrum type with given parameters.

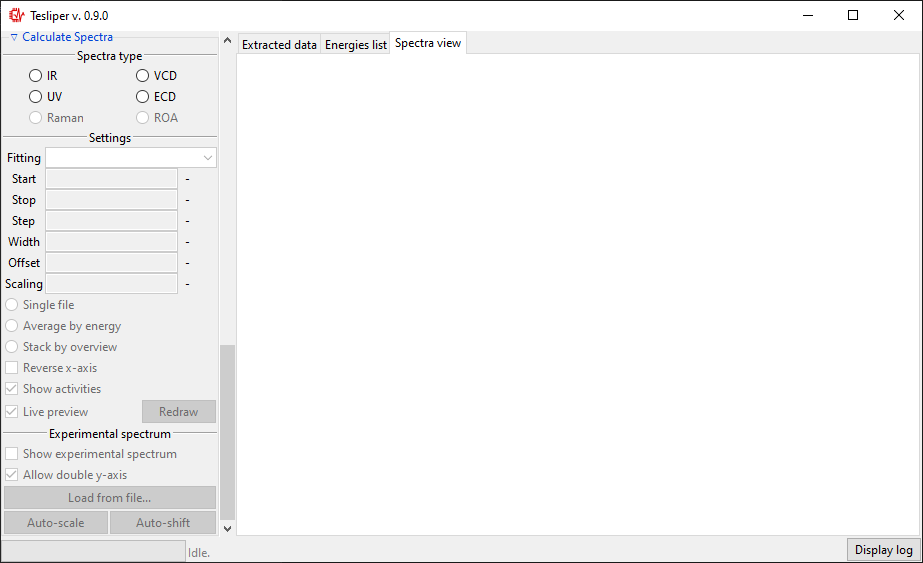

The Spectra view
tab is initially empty, but when you select one of the available
Spectra type
s, Settings
subsection will become enabled and the spectrum will be
drawn.
Tip
You can turn off automatic recalculation of the spectrum by unchecking the Live
preview
box.
Beginning and end of the simulated spectral range may be set using Start
and
Stop
fields. The view on the right will match these boundaries. Please note that
Start
must have lower value than Stop
. There is also a Step
field that
allows you to adjust points density in the simulated spectrum.
Width
field defines a peak width in the simulated spectrum. It exact meaning depends
on the chosen fitting function (see below). For gaussian fitting Width
is
interpreted as half width of the peak at \(\frac{1}{e}\) of its maximum value
(HW1OeM). For lorentzian function it is interpreted as half width at half maximum
height of the peak (HWHM).
Tip
You may change fields’ values with the mouse wheel. Point the field with mouse cursor and allow for a small delay before switching form the scroll mode to the value-changing mode. Move the mouse cursor away from the field to switch back.

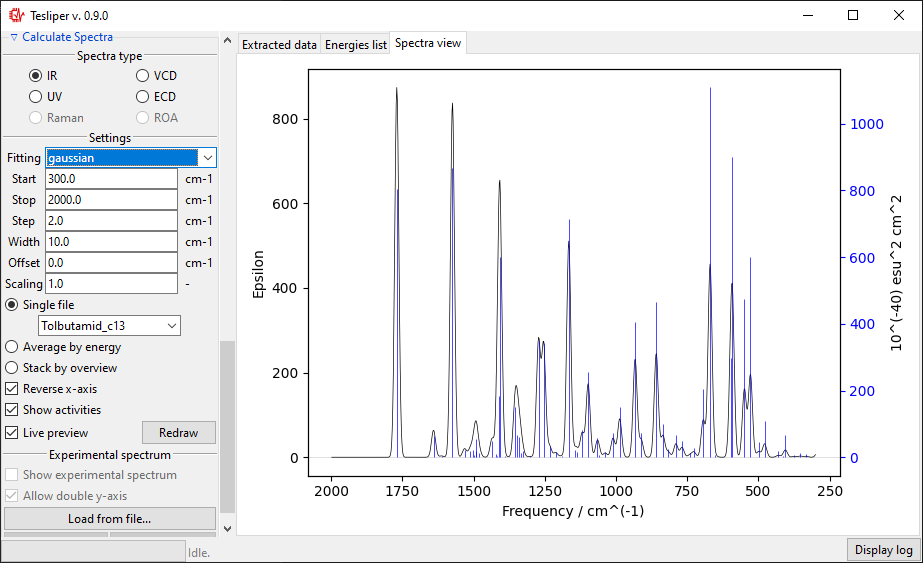

Finally, you may choose the fitting function used to simulate the spectrum from the calculated intensities values - this will have a big impact on simulated peaks’ shape. Two such functions are available: gaussian and lorentzian functions. Usually lorentzian function is used to simulate vibrational spectra and gaussian function for electronic spectra.

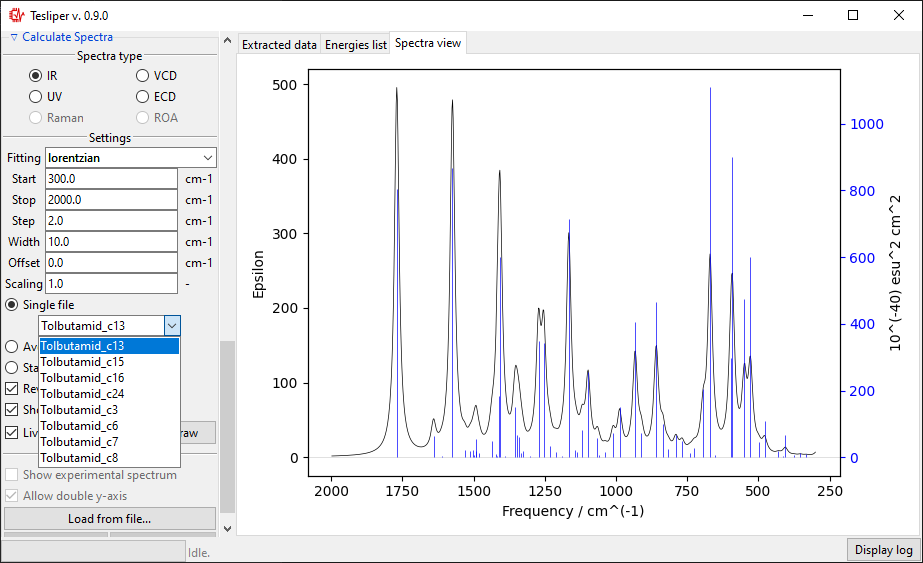

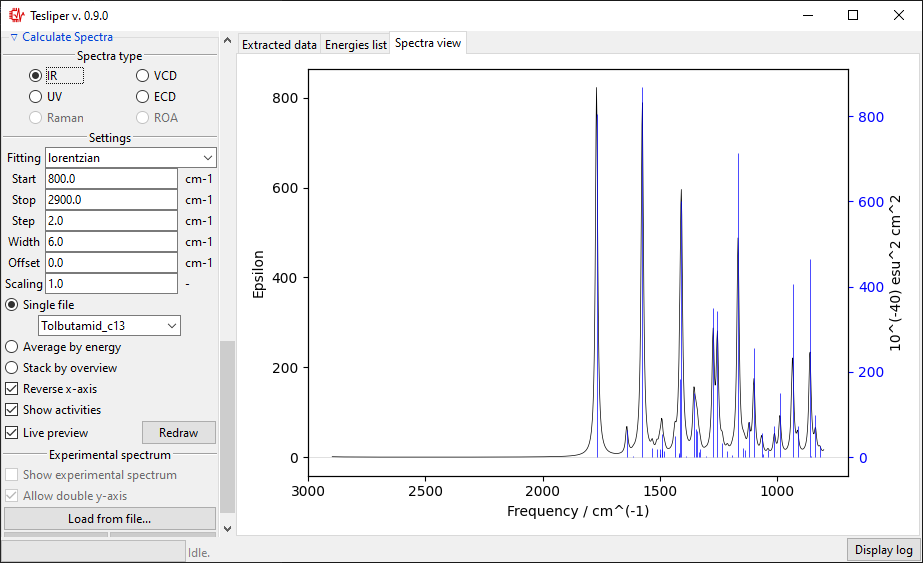

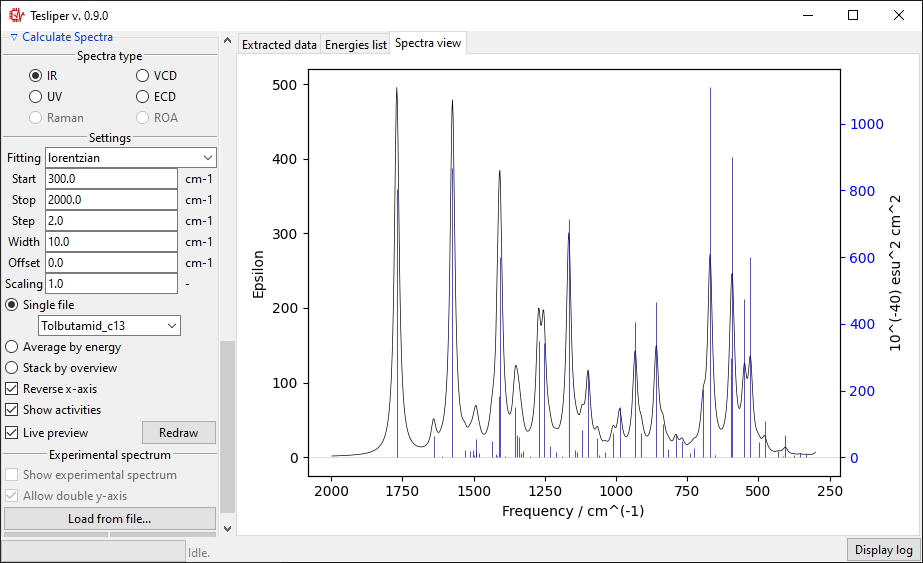

The default spectra preview is a Single file
preview that allows you to see the
simulated spectrum for the selected conformer. You may change the conformer to preview
using the drop-down menu shown in the screenshot below.

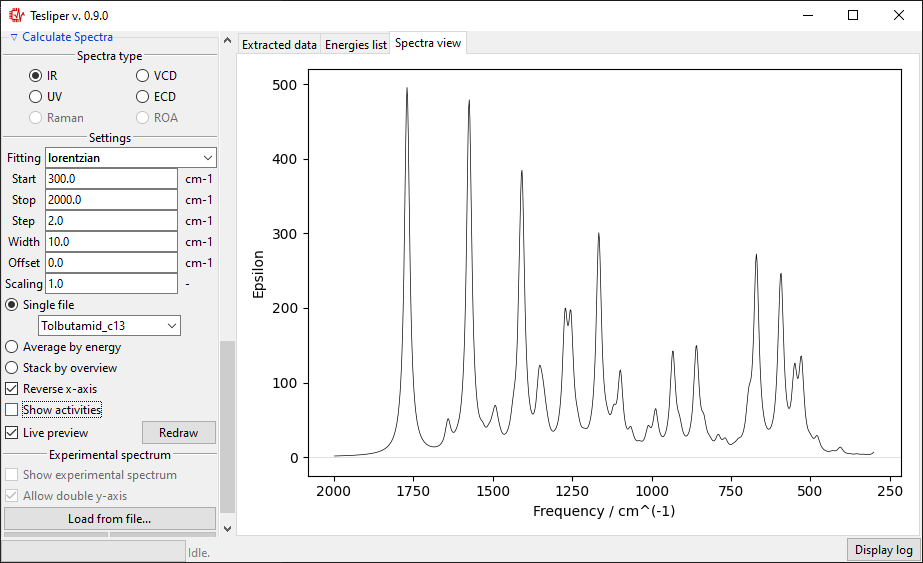

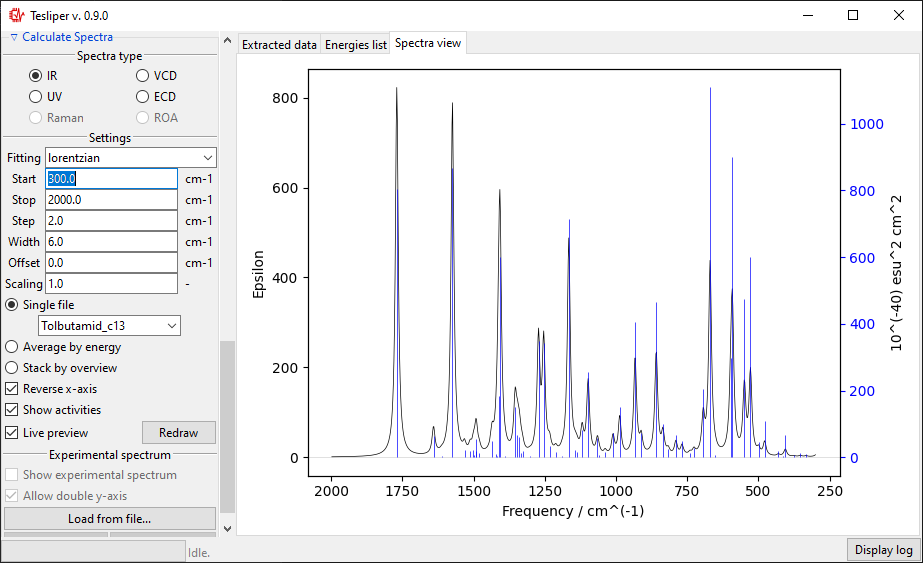

When in a Single file
preview, spectral activities used to simulate the spectrum are
also shown on the right. You may turn this off by unticking the Show activities
box.

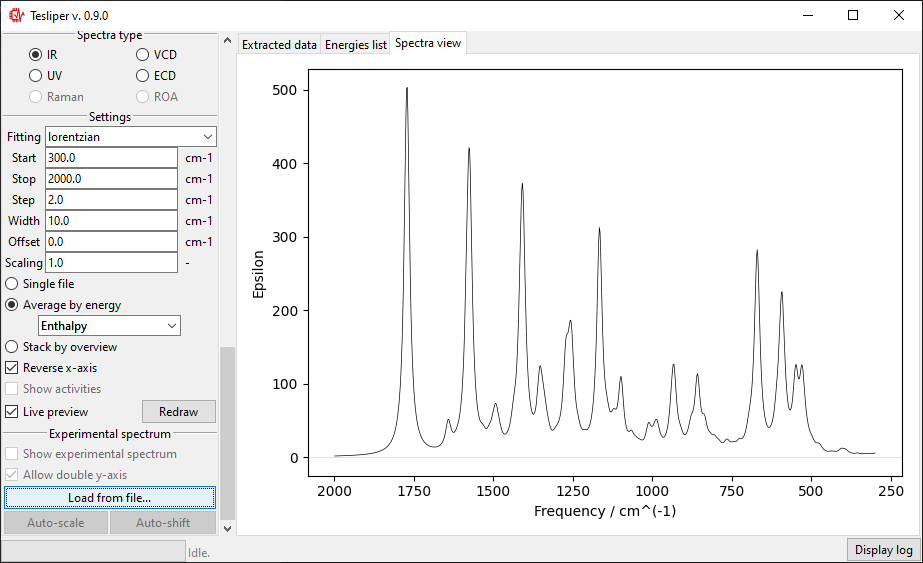

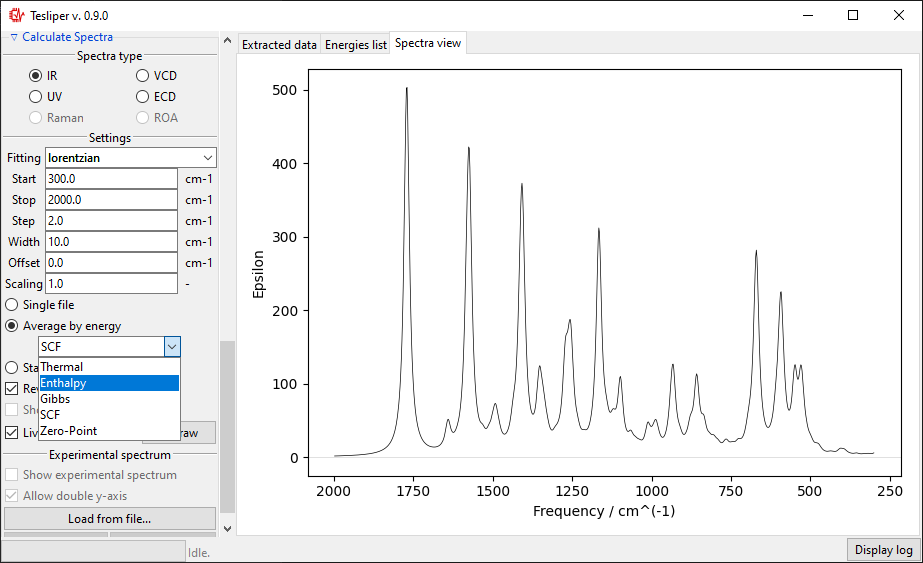

You can also preview an population-weighted average spectrum of all kept
conformers, by selecting Average by energy
. The drop-down menu lets you select the
energies that tesliper
should use to calculate conformers populations.

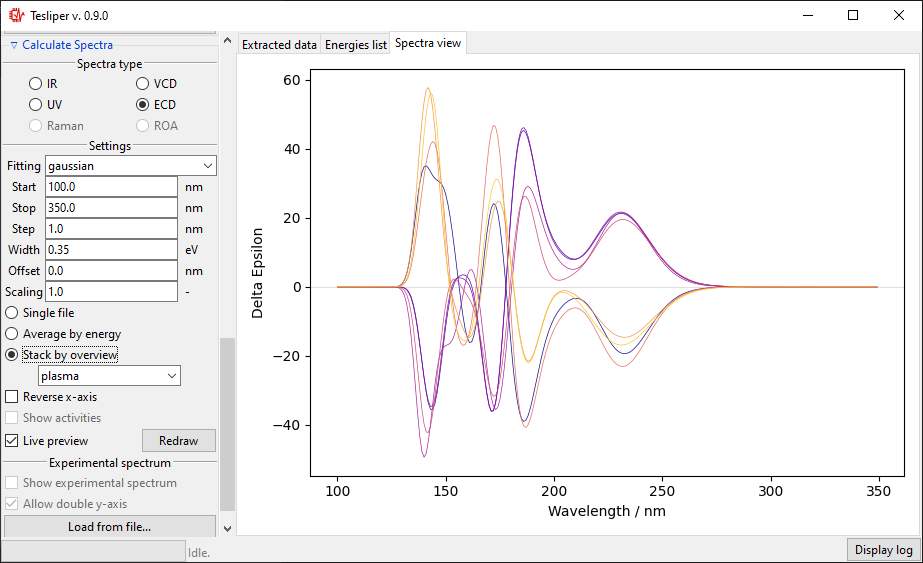

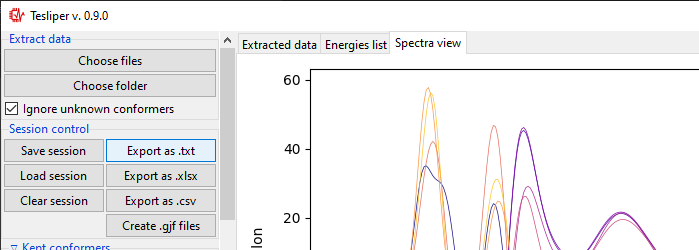

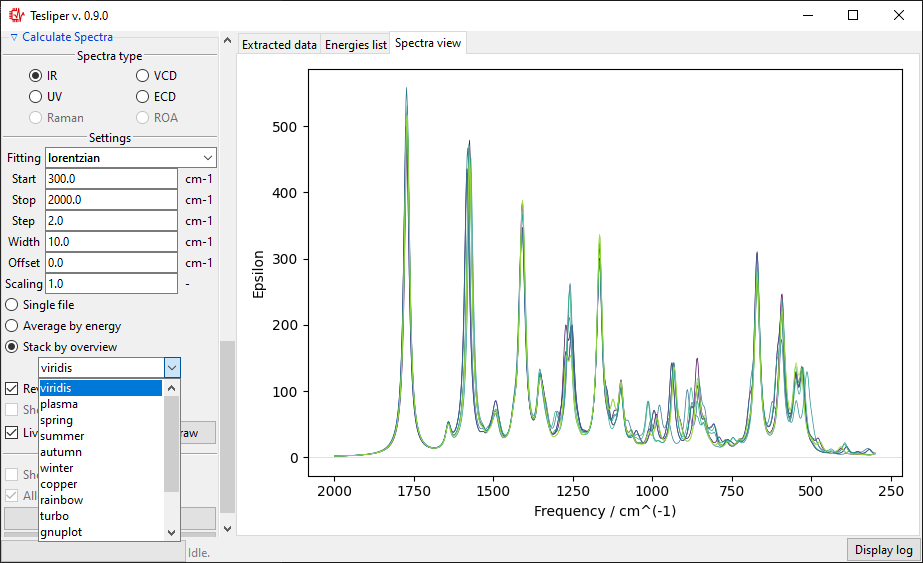

The final option is to show all kept conformers at once by selecting Stack by
overview
option. The drop-down menu allows to choose a color scheme for the stacked
spectra lines.
Comparing with experiment

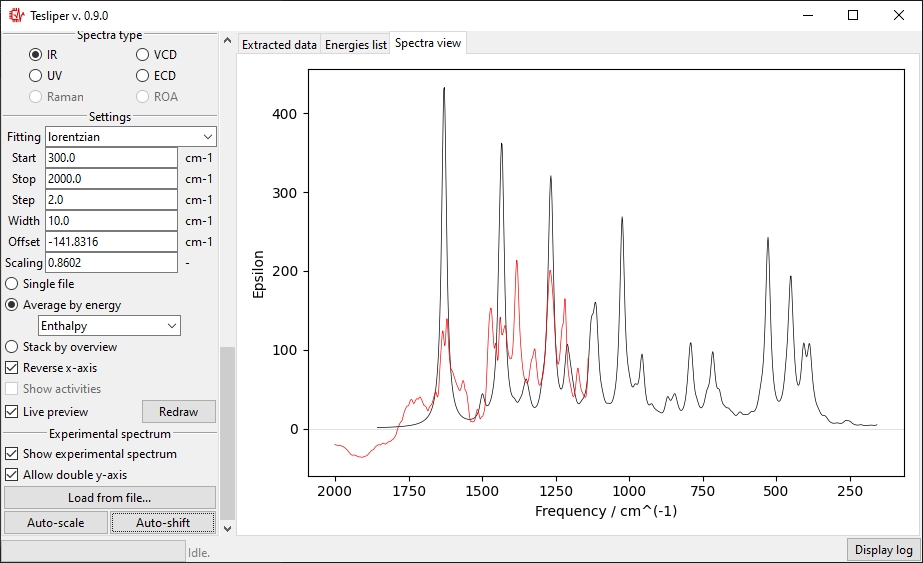

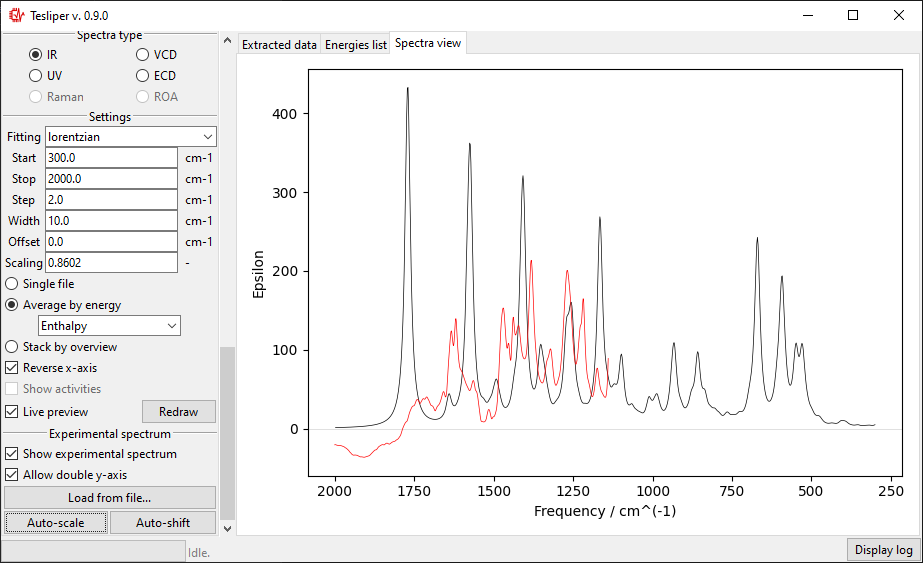

It’s possible to and an overlay with the experimental spectrum to Single file
and
Average by energy
previews. To load an experimental spectrum, use Load from file
button in the Experimental spectrum
subsection. tesliper
can read spectrum
in the .txt (or .xy) file format. Binary .spc formats are not supported.

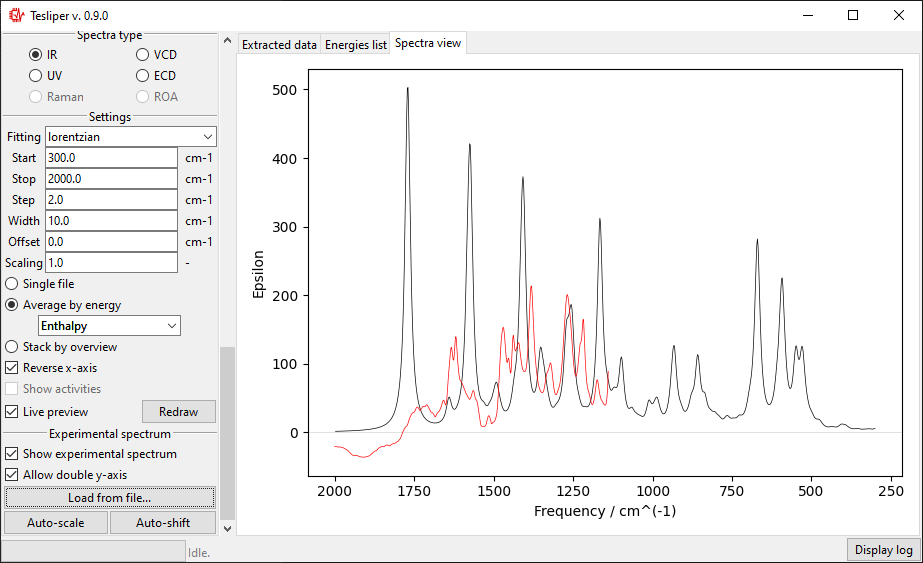

When you choose the experimental spectrum file, it’s curve is drown on the right with
respect to the Start
and Stop
bounds. Red color is used for the experiment.
In case of a significant difference in the magnitude of intensity in both spectra,
the second scale will be added to the drawing.

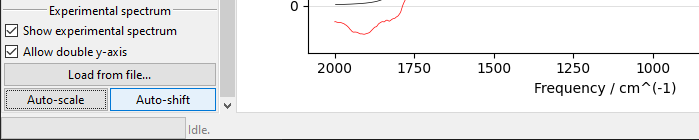

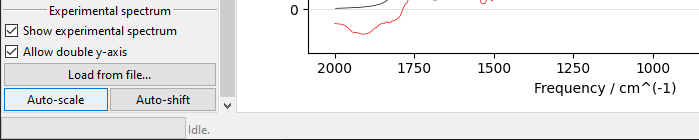

The scale of the simulated values may be automatically adjusted to roughly match the
experiment with the Auto-scale
button. It may be also adjusted manually by changing
the value of the Scaling
field.
Similarly, Auto-shift
button and Offset
field let you to adjust simulated
spectrum’s position on the x-axis. Positive Offset
shifts the spectrum
bathochromically, a negative one shifts it hypsochromically.
Scaling
and Offset
values are remembered for the current spectra type, just like
the other parameters.
Data export
Calculated and extracted data may be exported to disk in three different formats: text
files with Export to .txt
button, csv files with Export to .csv
button and
Excel files with Export to .xlsx
button. Clicking on any of those will bring up
the Export...
dialog.

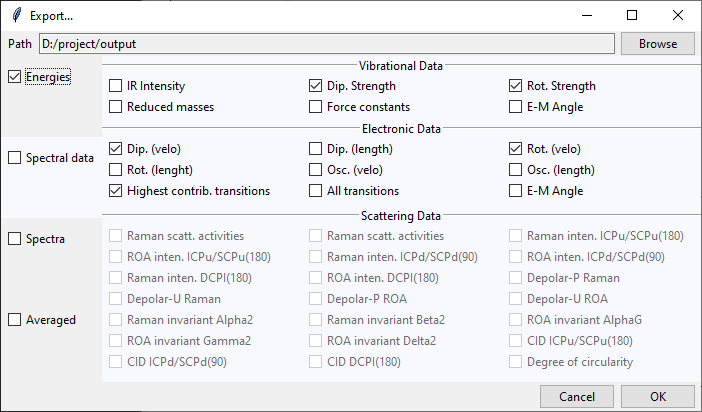

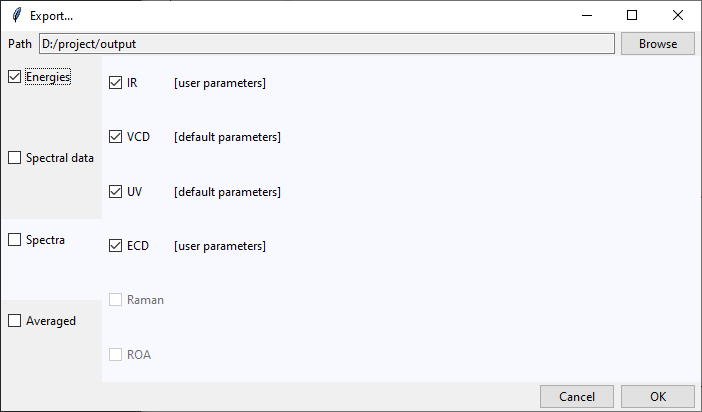

At the top of the Export...
dialog is displayed the path to the currently selected
output directory. It may be changed by clicking on the Browse
button and selecting
a new destination. Files generated by tesliper
will be written to this directory.
On the left side of the dialog window you may select what type of data you want to export by ticking appropriate boxes. Once you hover over the certain category, more detailed list of available data will be shown on the right. By ticking/unticking selected boxes you can fine-tune what should be written to disk.
In the Spectra
category, beside each available spectra type, there is a note that
informs if calculation parameters were altered by the user. Spectra will be recalculated
with current parameters upon the export confirmation.
Creating Gaussian input

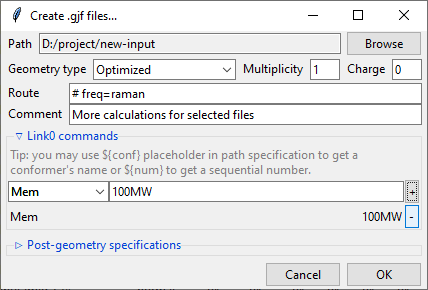

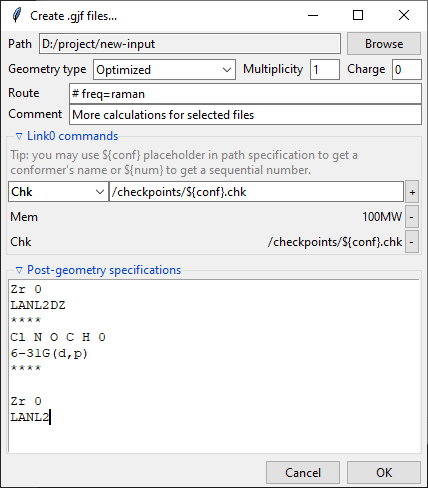

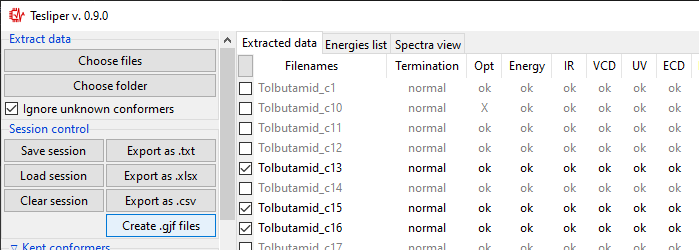

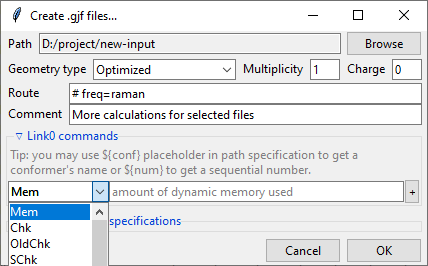

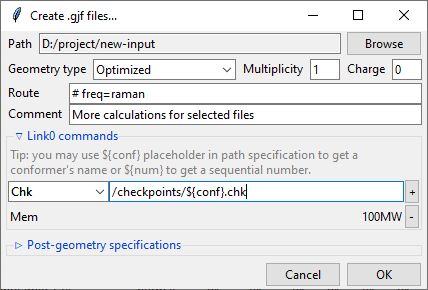

Clicking on the Create .gjf files...
will open a dialog window that lets you setup
a next step of calculations to conduct with the Gaussian software.
Similarly to the previews one, this dialog also features a Path
field that specifies
the output directory, which may be changed by clicking on the Browse
button. Bellow
it is the Geometry type
drop-down menu that allows you to select, which geometry
specification should be used in the new input files. Input
is the geometry used as
an input in the extracted .log/.out files, Last read
is the one that was lastly
encountered in these files. Optimized
is the geometry marked as optimized by
Gaussian, but it is only available from the successful optimization calculations.
You also need to specify the Charge
and the Multiplicity
of the molecule.
Below are the Route
and Comment
fields. The first one specifies the calculation
directives for the Gaussian software. The second one is a title section required by
GAussian.
Further below is the expandable Link0 commands
panel that allows to specify Link 0
directives, which define location of scratch files, memory usage, etc. Select a command
name from the drop-down menu, filed on right will show a hint about its purpose.
Provide a value in the input filed and click a +
button to add a command. It will be
added to the list below. You can update the selected command by providing a new value
and clicking the +
button again or remove it by clicking the -
button.
Path-like commands may be parametrized: ${conf}
will be substituted with the name of
conformer and ${num}
will be substituted with the sequential number.
Finally, you can add a post-geometry specification. It will be written to the end of each .gjf file.
Saving session
You can save a session (all data, along with current trimmed and parameters) with a
Save session
button. A popup dialog will be opened, where you can specify a target
session file location.
To load previously saved session use the Load session
button. You can also discard
all currently held data by clicking the Clear session
button.
Warning
Loading and clearing session cannot be undone! A confirmation dialog will be displayed for those actions.
